Making Frictionless Connections, Sensors-to-Device, Machine-to-Device, Device-to-Device & Device-to-Human.

BorgConnect® Platform Edge Devices:


The BorgConnect® Node
provides data collection from
various sensors.


The BorgConnect® Hub
is a central computing device,
within the edge, providing
outcomes based on the data
collected by the various
BorgConnect® Nodes.

...

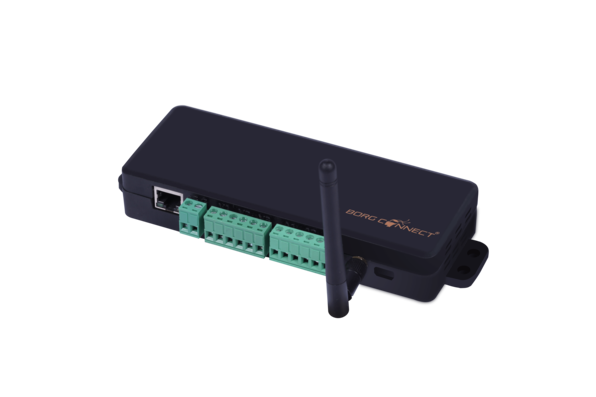

The BorgConnect® Node

An IoT Edge device that converts up to 6 analog
inputs to digital readings and transmits the
readings through Wi-Fi or LAN.


Specifications:
  • 3 mA terminal connector inputs with range 0 to 50 mA.
  • 3 V terminal connector inputs with range 0 to 5 V.
  • 1 Ethernet Port.
  • Inbuilt 802.11g compliant Wi-Fi Adapter.
  • UL component 1 Power Adapter
    (Input: 0 to 250 V, Output: 2 mA).
  • External configuration of Wi-Fi or TCP settings.
  • ROHS Compliant.
  • Pricing starts from $550 USD.
The BorgConnect® Hub

An IoT Edge Computing Device offering
BorgConnect® Smart Manufacturing Bundle
applications.


Specifications:
  • Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5 GHz.
  • UL compliant 1 Power Adapter (Input: 0 to 250 V, Output: 2 mA).
  • Inbuilt Wi-Fi.
  • Bluetooth.
  • Gigabit Ethernet.
  • Operating temperature: 0 to 50 C ambient.
  • Support for 12C, SPI, RS232, RS485, UART, Relay Control, HMI,
    Analog (4-20mA, 0-5V, 0-10V), Digital Sensors, Industrial LAN, AV, USB, Bluetooth & Wi-Fi, MTConnect.
  • Data adapters for PLC, SCADA, Historian, OPC®, Maximo®, Oracle® EAM, SQL® Server, SAP®.
  • Signature Analysis for legacy machines.
  • Multiple Adapters for disparate device connections.
  • Pricing starts at $1850 USD.
...
